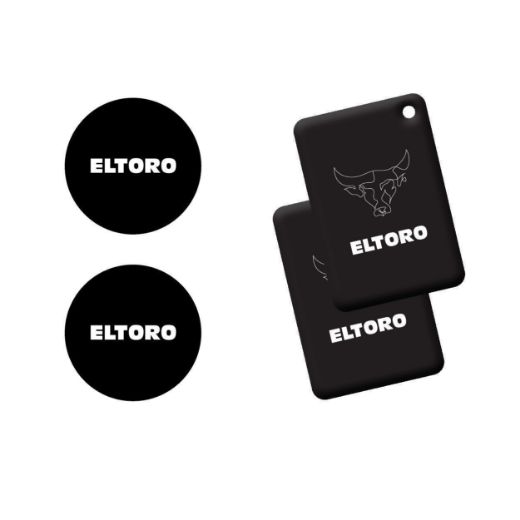

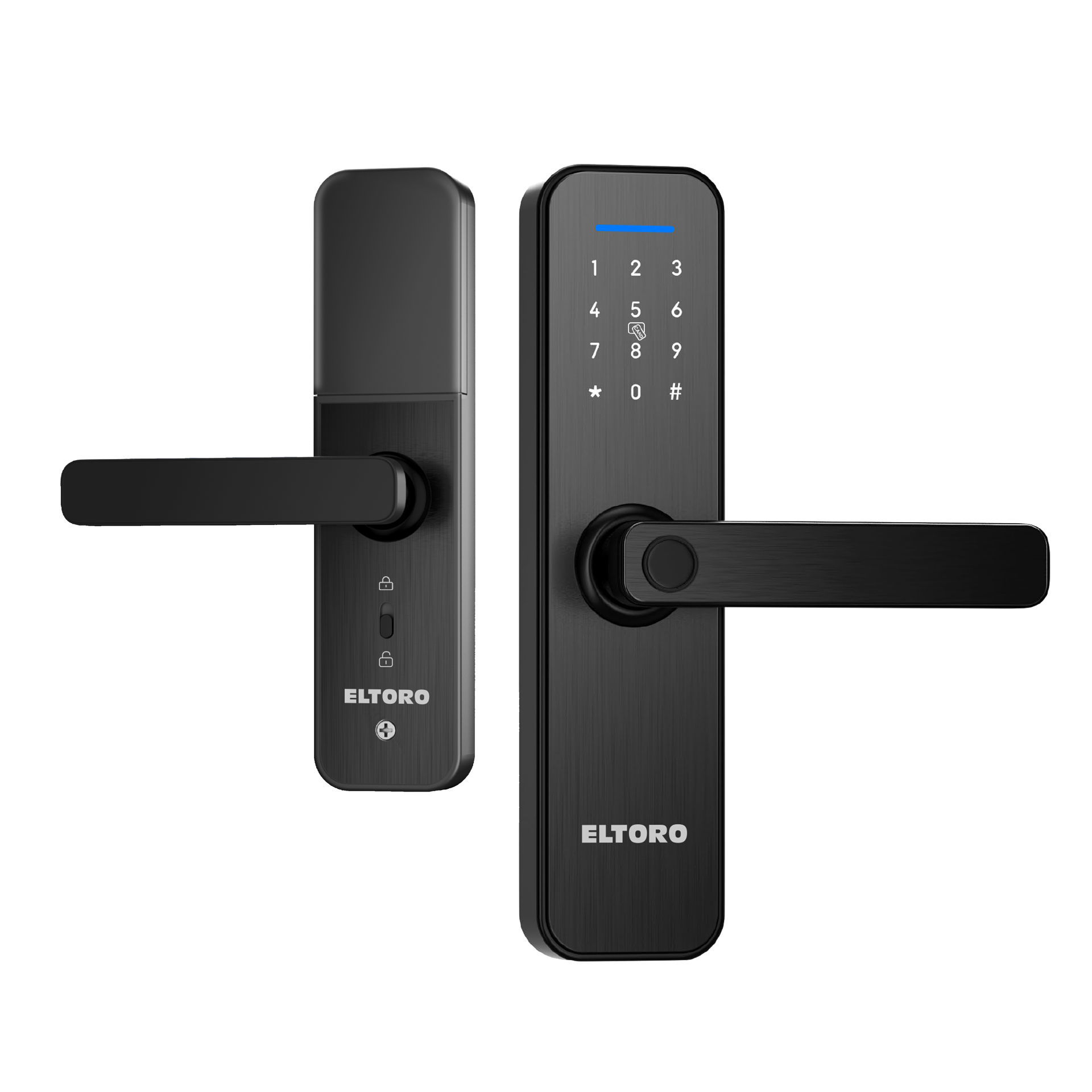

    Eltoro Smart Lock + Access Card For The Smart Lock 2 Pcs - Black

    Brand: Eltoro
    Eltoro Smart Lock recognizes your fingerprint in just 0.3 seconds, and unlocks your door in 1 second. It’s faster than fumbling for your keys. Suitable for VPC, WPC wooden doors It is not recommended to use the lock for external doors and exposure to high heat
    Code: 373570
    Availability: In stock
    $180.95
    i h
    Delivery date: 3-5 days

    Initialization

    Open the battery compartment. Locate the settings button. Press and hold the settings button for 5 Seconds, then you will hear “Initilazation Successful”.

    Note: The password for initialization is 123456# , you can also open the door with any fingerprint.

    Add administrator

    You can add up to 3 administrators.

    After the initialization state Short Press the settings button You will hear “ Please add administrator information”

    The administrator can be added by fingerprint, password or card.

    Add User

    The first 3 users will be considered as Administrators,New user can be added using fingerprint, password of 6 digits or by card

    Make a note of the User Number. Use page no 5 to maintain these records. This user number is important when you want to delete a particular user. Press * to Exit.

    Delete User

    Activate the number pad by touching it. Press * # , sign in as administrator, Press 2 to delete user. Enter the user number that you want to delete. Press # to confirm. “ Delete Successful”.

    Passage Mode

    Passage mode is a feature , when set, allows free access through the door using just the lock handle, i.e. entry WITHOUT user sign in.

    An example of this being used is in a primary school when code entry is used during the day, but free passage is set for parent drop off and collection times. This same secnarion can be at home for internal doors.

    Enable Passage mode :Activate the number pad by touching it. Press * # , sign in as administrator, Press 3 “Passage Enabled” Press * “ setting exit” Now you have free access. i.e. entry WITHOUT user sign in

    Disable Passage mode:Activate the number pad by touching it. Press * # , sign in as administrator, Press 3 “Passage disabled” Press * “setting exit”

    Time Setting

    Activate the Number pad by touching it. Press * # , sign in as administrator, Press 5 for Time setting. It will broadcast the system time. Example to set the following To February 24, 2021, 15:04:32

    Input the number 20210224150432 on the keyboard, after the settings, press # to confirm. The system will broadcase set time and exit

    Add Network

    Connect the smart lock to Wifi)INTELLIGENT LOCK USER MANUAL Download Tuya App for Appstore/Play store. You can scan this barcode to download the Tuya App Open the App Register account and Log in.

    Peform the below steps on the smart lock Activate the number pad by touching it. Press * # , sign in as administrator, Press 6, press 1 for Hotspot link or 2 for Smart Link Your will see number 5 flashing

    You will see the Number 5 blinking on the Lock On Tuya App check “ Confirm the indicator is blinking rapidly” The Lock Name will be displayed and it will be added to Tuya App. You can edit the name of the lock to rename the lock

    Remote Unlocking

    For remote unlocking, Activate the Number pad by touching it. Press 9 # The Admin will receive the request information.

    Products specifications
    BrandEltoro
    Warranty12 Months
    Color
